01
Parametric modeling layer
We rebuild your frozen STEP as a recipe: approved dimensions become variables with relationships — so the request is unambiguous and one model becomes thousands of valid parts.
Product
The configurator that gets you designed in first.
The configurator that gets you designed in first: customers size the part, see exactly what they're getting, and download STEP the moment they request a quote. For you: higher win rate in comparison-shopping RFQs. For their customer: see it, get the STEP, keep designing.
System flow
Frozen STEP in. Adjustable recipe. STEP they can use.
01
One frozen STEP
Your correct part at one size — shop conventions and all. Ground truth to build against, not the adjustable product.
02
Parametric recipe
We rebuild so dimensions are knobs and related geometry recalculates. That’s the product — not a prettier photograph.
03
Web knobs
Sliders on your site send numbers to those variables. Customer sizes the part; live 3D updates — no dimension PDF.
04
Fresh STEP out
They download a ready-to-use STEP into their assembly and quote with the exact spec — you get designed in first.
Architecture
From CAD rules to manufacturing handoff
Feature deep dives
02
Configurator UI layer
Web sliders and dropdowns are wired to those variables. Sales can share a branded link mid-call — no dimension PDF.
03
3D visualization layer
Buyers see exactly what they asked for as the recipe rebuilds. Preview builds trust before anyone opens CAD.
04
Engineering export layer
A fresh STEP of their exact configuration — into their assembly now — plus structured data for the exact-spec quote. STEP is the universal CAD handshake.
05
Rules and constraints engine
Invalid combinations are blocked early so the STEP they design around is manufacturable — not a guess.
06

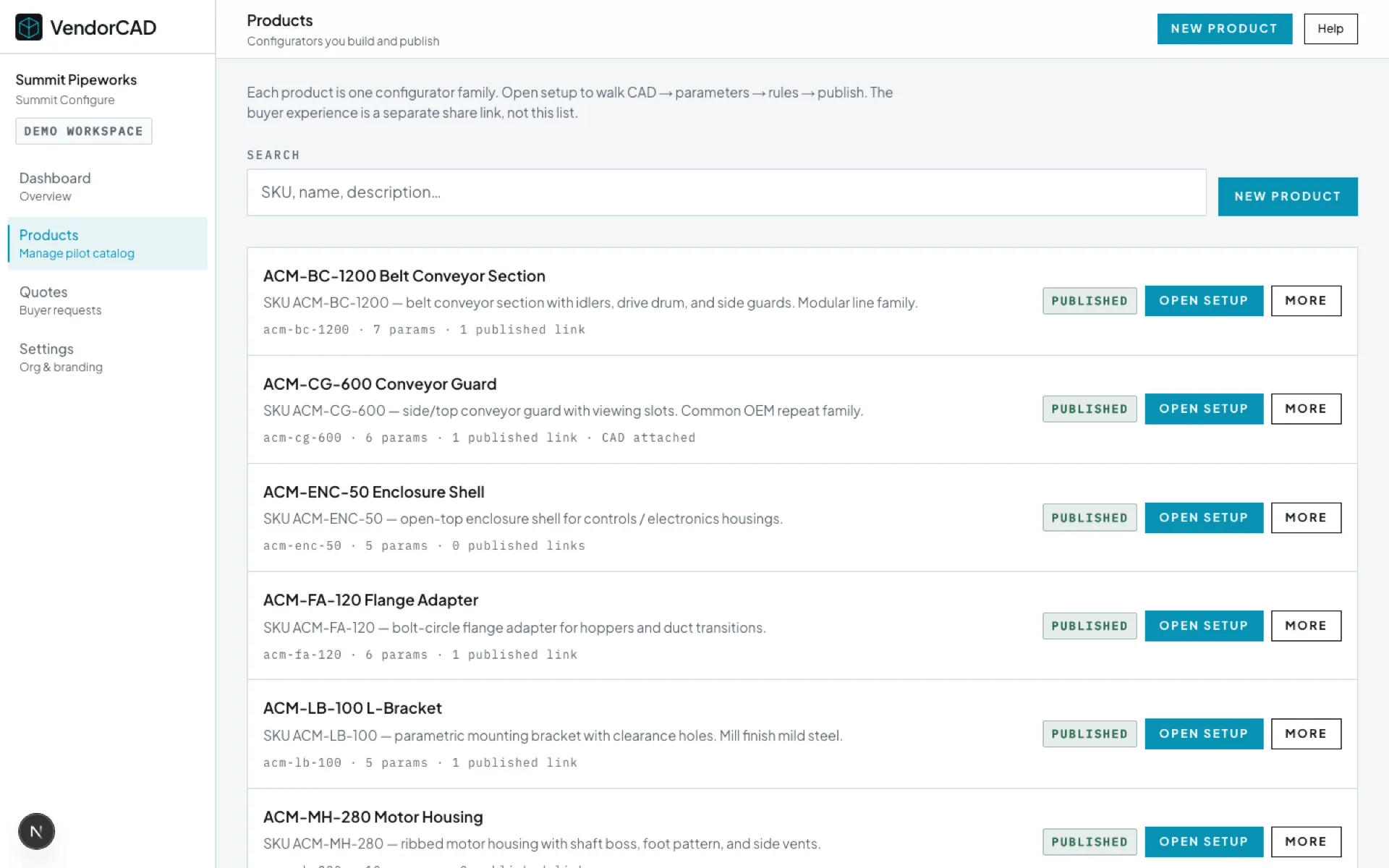

Admin management layer
Publish families, manage share links, and review quote requests with frozen parameters in one ops surface.
Modules
What ships in the platform.
Modules sized by the job — each with what it does and why it helps you get designed in first.
Capability
Parametric CAD logic
We rebuild your frozen STEP as a recipe: named variables and relationships — not a fixed photograph of one size.
Why it matters: Parameterization is the product. One model becomes thousands of valid parts; the website just turns the knobs.
Capability
Web configurator UI
Buyers and sales pick approved options in a branded browser experience — mid-call, on a share link.
Why it matters: Each slider is wired to a model variable. The site doesn’t know CAD; it sends numbers to the knobs we exposed.
Capability
3D viewer
Live 3D preview as options change. Rotate, inspect, and confirm before anyone exports.
Why it matters: No ambiguity about what they asked for — they see it before the quote goes out.
Capability
Rule / validation engine
Only approved combinations ship. Constraints cut invalid configurations before they hit engineering.
Why it matters: Trustworthy STEP — designed-in only happens if the model is correct.
Capability
STEP / export pipeline
When they’re happy, the backend rebuilds their exact config and exports STEP — the universal CAD handshake.
Why it matters: They need geometry for their assembly, not a picture. STEP works in SolidWorks, Inventor, Creo, NX — anyone can use it.
Capability
Admin & publishing
Publish families, manage share links, and keep catalog state under ops control — not a shared drive.
Why it matters: You own the configurator that locks spec — not a one-off email attachment.
Outputs
What ships today vs what we scope.
Live outputs are verified on the Summit demo path. Scoped items are available when a pilot explicitly includes them — not advertised as default platform features.
Live today
STEP
Manufacturing-ready solid when the export gate passes.
GLB preview
Lightweight 3D for the web viewer and share links.
Quote capture
Frozen params land in the manufacturer App inbox.
Structured params
Configuration payload for quoting and handoff.
Pilot-scoped
PDF drawing
Available when scoped into a pilot — not a default V1 toggle.
BOM / cut list
Pilot-scoped packaging of params for shop / ERP entry.
Integrations
Honest status — not checkbox fiction.
We label what is live versus what is scoped during a pilot. That keeps the product advertisable without overclaiming connectors.
CAD sources
Live pathParametric templates (build123d) and optional OnShape Part Studios. Fusion 360 / Inventor / SolidWorks hand off via manufacturing-ready STEP — engineers keep their seats.
CRM
Live via webhookQuote submissions POST to your HubSpot, Salesforce, or Zapier/Make URL with HMAC signing. Native CRM OAuth apps remain pilot/Custom scope.
ERP
ScopedStructured outputs support order-entry workflows; live ERP sync is pilot-scoped.
PLM / PDM
ScopedEngineering keeps source of truth in existing systems; VendorCAD exposes approved options.
Security & deployment
Hosted tenants with controlled share access.
Session cookies stay httpOnly. Exports use short-lived signed URLs. Share links can be revoked. Custom / plant environments (SSO, air-gap workers) are scoped after a successful pilot — not sold as checkbox fiction.
Next step
Ready to get designed in on your product family?
Book a 15-minute walkthrough. Higher win rate. Comparison-shopping buyers design around the supplier who delivers a correct model instantly — before competitors respond.
